QUERY YOUR MODEL FROM TABULAR EDITOR

…view data & test DAX while developing your Power BI Dataset

CHECK & TEST MODEL DATA

While developing your Power BI Dataset, you must routinely query the model with a table or visual to check data, your model design and your DAX code. In Power BI this is done in the visual canvas, but how is this done from Tabular Editor? Many developers will work on the Power BI dataset from Tabular Editor with a separate “thin” report open in Power BI Desktop to test & view recent changes. However, this can cost time & efficiency from alternating between two different windows and user interfaces. This becomes particularly problematic when searching transactional data in tables, as there’s no way in a Power BI Desktop “thin report” to see a “table data view”. Instead, you must tediously create a table visual on the canvas to give you what you need. Further, Power BI visuals can make it more difficult to test & debug initial DAX code due to modified filter context on the report page — if you forget a slicer, filter or interaction, for example.

Instead, you can use Tabular Editor for both developing and querying / testing the model. This gives immediate, explicit feedback so you can focus on development without wasting time on ad hoc testing & exploration. There are a number of ways to do this, and this article gives a brief overview of each.

This article focuses on Tabular Editor 3; any mention of ‘Tabular Editor’ refers to Tabular Editor 3. Note, however that it is also possible to use method 4 in Tabular Editor 2, discussed below.

DEVELOPING WITH DAX QUERIES

DAX queries are generated by Power BI visuals and other client tools to query the data in your model. They can also be authored & evaluated from the ‘DAX Query’ window in Tabular Editor 3. From here, you can use the DAX code-assist features and DAX Debugger to develop, test & debug your code. Query windows will automatically refresh when changes are deployed to the model, letting you focus on development while periodically checking query window results.

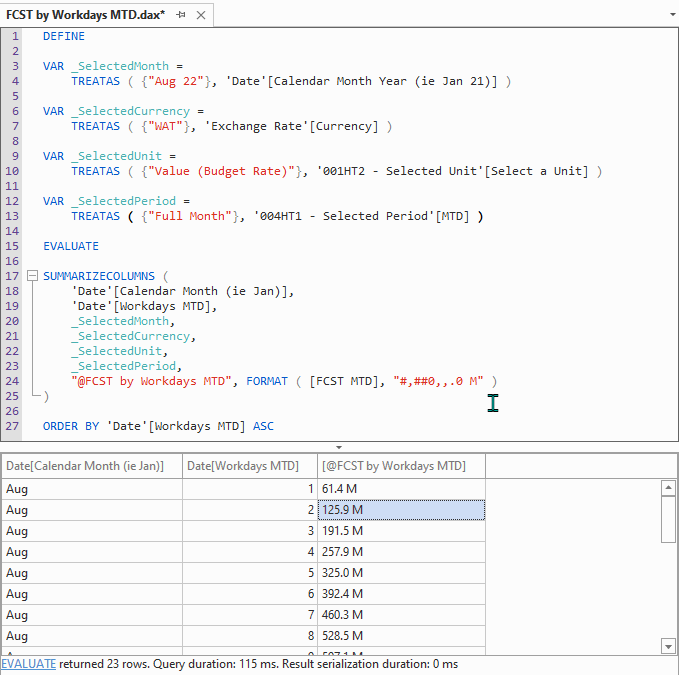

Example of a DAX Query in Tabular Editor 3. The developer is testing a measure [FCST MTD] which should cumulate by ’Workdays MTD instead of calendar day, though the Forecast data is only given at monthly granularity. As DAX development scenarios become more complex, they are better suited for development & testing in a query window. Example of a DAX Query in Tabular Editor 3.   The developer is testing a measure [FCST MTD] which should cumulate by ’Workdays MTD instead of calendar day, though the Forecast data is only given at monthly granularity. As DAX development scenarios become more complex, they are better suited for development & testing in a query window.

Developing in the DAX Query window becomes particularly helpful when using Define and In-line measure to declare and modify it’s DAX definition in the query scope. This allows you to safely make & test changes to a measure without changing the underlying measure DAX; the expression is only changed for that query. No changes are written to the model. When using a read-only instance of Tabular Editor connected to a production model, this lets you safely use production data to develop & test difficult DAX measures.

This lets you easily modify both the filter context and underlying DAX in a single, contained environment, which you can comment, save & document.

An example where a measure [FCST MTD] is: 1. Tested in different filter contexts (changing the month) 2. The definition is checked using ‘Peek Definition’ 3. The measure is defined and changed in the query scope to test the effect of changing a constant An example where a measure [FCST MTD] is:     1. Tested in different filter contexts (changing the month)     2. The definition is checked using ‘Peek Definition’     3. The measure is defined and changed in the query scope to test the effect of changing a constant

One of the biggest boosts to the productivity & quality of my DAX development was authoring & testing more complex DAX from within the query window with Define Measure:

  • Reduced time between iterations: A single window for all development, testing & optimization.
  • More flexibility: Modify the query, filter context, measure DAX & upstream dependencies.
  • Better documentation & repeatability: Save query & results in source control for later use.
  • Dive deeper with the DAX Debugger: Once changes are written, SUMMARIZECOLUMNS queries with measures can be interrogated to break down each step in the evaluation and understand the details of how the query reaches the final result.

If you aren’t quite comfortable writing your own queries, you can also copy Power BI visual queries using the “Performance Analyzer” in Power BI Desktop, adjusting and executing them in the Tabular Editor DAX Query window. The performance analyzer & how to copy queries are described in this article by SQLBI.

USING A DRAG & DROP, PIVOT-TABLE-LIKE EXPERIENCE

If you prefer not to write DAX queries or you want to perform simpler checks, you can also drag & drop fields and measures into the Pivot Grid window. This will generate an MDX query to produce a pivot-table-like matrix, displaying the results. The Pivot Grid can be filtered and formatted, making it a nice tool to interrogate data and perform small, ad hoc investigations to i.e. find outliers or check how measures evaluate across different categories & breakdowns.

Example of configuring a Pivot Grid to check the number of products for each product type
Example of configuring a Pivot Grid to check the number of products for each product type

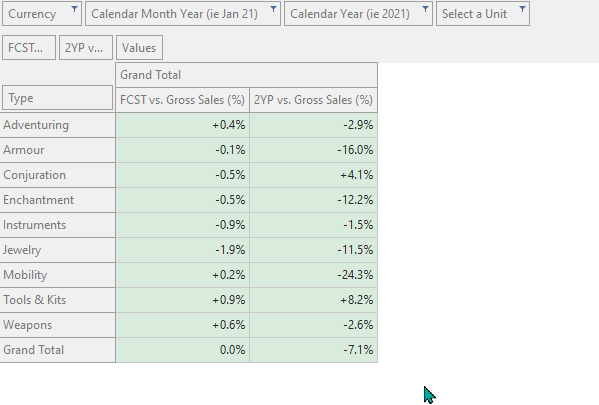

Example of using conditional formatting in the Pivot Grid to check which product groups attained the Forecast in the previous month.
Example of using conditional formatting in the Pivot Grid to check which product groups attained the Forecast in the previous month.

Any open Pivot Grid will automatically refresh when changes are deployed to the model from Tabular Editor, making it easy to test and check their result. Impersonation of roles and users works on Pivot Grids as well, allowing you to test RLS, so long as the user being impersonated has build permissions on the dataset and is added to the security role from the Power BI Service.

PREVIEW & FILTER TABLE DATA OR TRANSACTIONS

When developing the model, you often want to check table data or even individual transactions. This might be due to data quality issues or anomalies, or just to check and investigate dimension tables. In Tabular Editor you can right-click & select ‘Preview data’ for any table, which will show the top N rows for each column (usually 1000; configured from preferences). While open, columns can be filtered, rearranged or even dropped from the view.

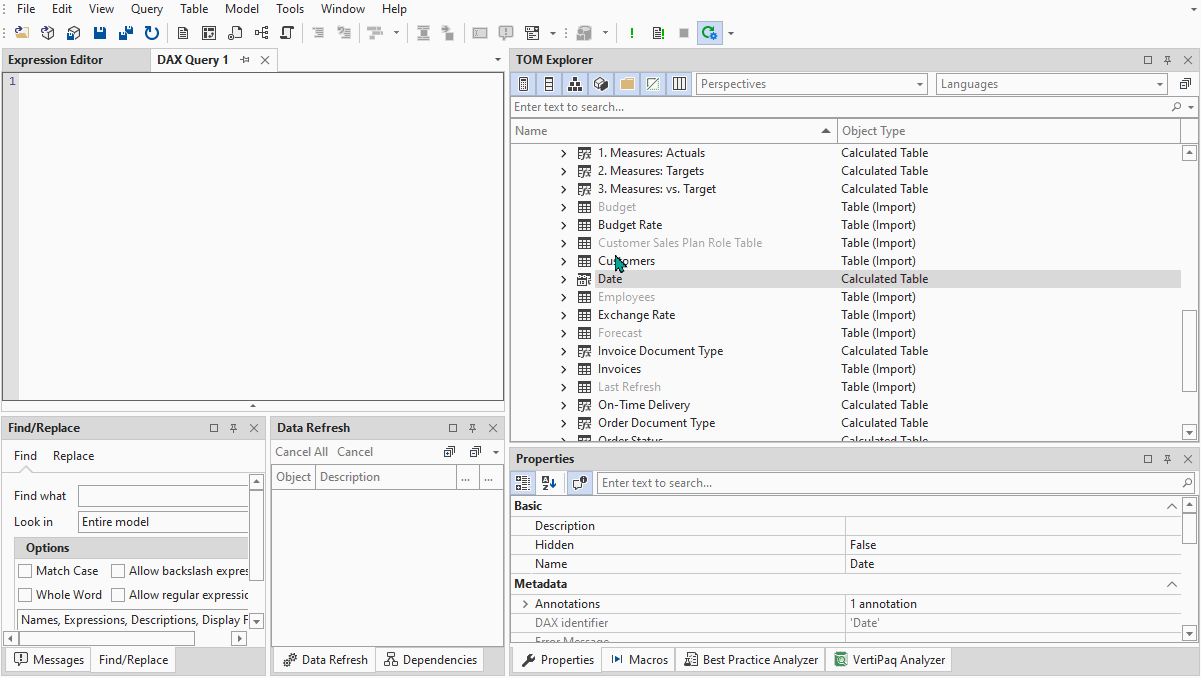

Example of ‘Preview Data’ being used to interrogate the ‘Employees’ table, perhaps to check a specific UPN for impersonation & testing RLS in the model.
Example of ‘Preview Data’ being used to interrogate the ‘Employees’ table, perhaps to check a specific UPN for impersonation & testing RLS in the model.

Any active impersonation will also be reflected when Previewing data, making it easy to test & check RLS not only for specific queries, as above, but also for dimensions and transactions.

EVALUATE DAX FROM WITHIN C# SCRIPTS & MACROS IN TABULAR EDITOR

One of the most powerful features in Tabular Editor, C# scripts allow programmatic access to the Tabular Model Metadata. We can use them to read, interact with and write model metadata changes with some C# written inside the Tabular Editor “C# Script” window. One of the features of these scripts is it provides two different ways to evaluate DAX queries, which we can use in downstream elements & actions.

C# Scripts enable automation and extreme productivity enhancements. In this case, we can use scripts to evaluate selected objects in DAX queries and output the result in a pop-up table. This simple use-case can make it trivial to test & check our model while we work, particularly when combined with Tabular Editor’s custom keyboard shortcuts & hotkeys. The simplest example could be performing a row count of the selected table, while more complex examples evaluate selected columns or a selected measure to view the summarized result.

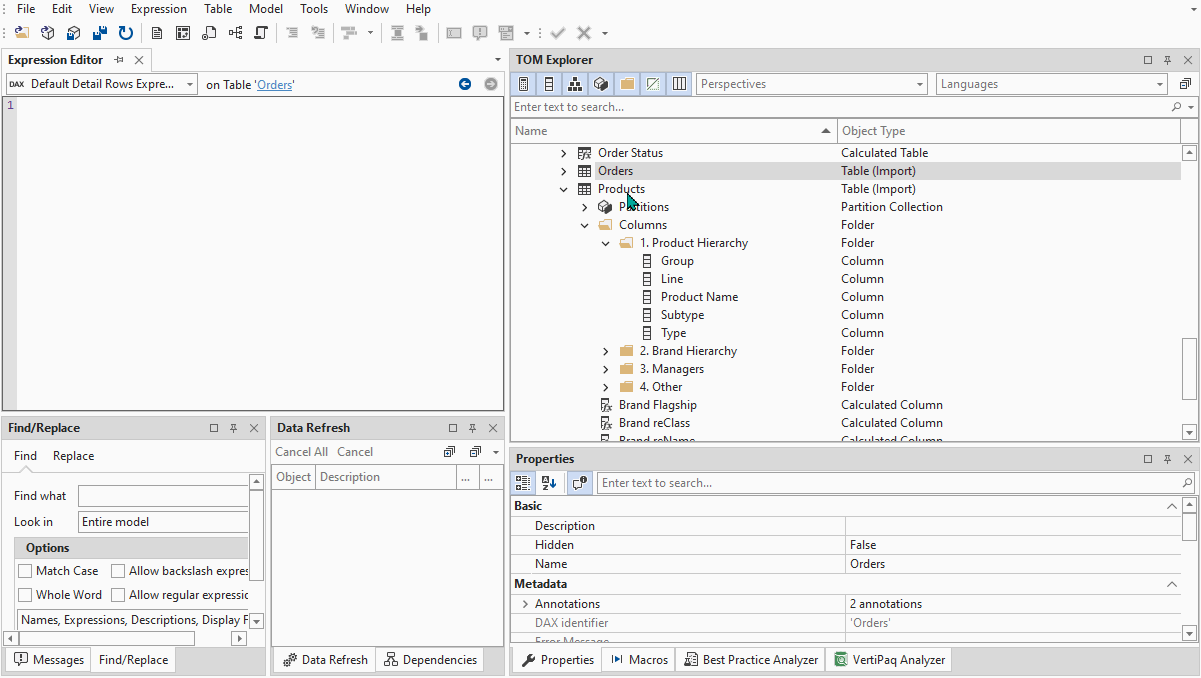

Example of a macro to count rows in a table, or preview table columns in an interactive query window.
Example of a macro to count rows in a table, or preview table columns in an interactive query window.

Like other use-cases, scripting is an advanced feature that enables automation and efficiency. Creating some scripts to test and check model objects can be very valuable during development. However, it’s likely that more specific, one-off queries will be used to cover the full scope of testing needed. Further, DAX queries evaluated in C# Scripts are not documented to respect any active impersonation, so testing of RLS will be limited to the other methods described, above (#1 - 3).

Regardless, creating some macros to execute & automate repetitious queries can be handy, save time & aid your development.

C# SCRIPT: PREVIEW COLUMNS / MEASURES

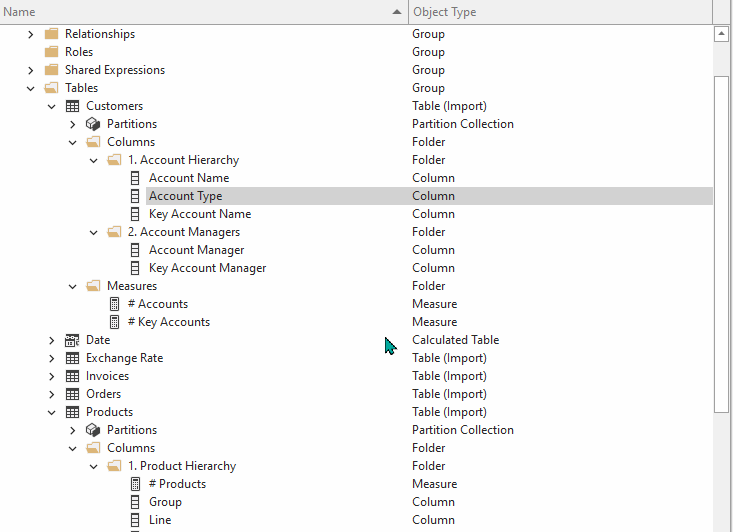

A macro which evaluates the selected column & measures in an interactive query result window. In the example, the macro is bound to a keyboard shortcut (Alt + G) for simplicity & efficiency.
A macro which evaluates the selected column & measures in an interactive query result window.  In the example, the macro is bound to a keyboard shortcut (Alt + G) for simplicity & efficiency.

If the below script is copied into a Tabular Editor 3 C# Script window, you can save it as a macro and use it to query any valid combination of selected columns & measures in the model. The query result will be displayed in an interactive result window that can be sorted and filtered like any DAX query, or copied to the clipboard if you want to save the results. The script can also be modified to automatically generate logs and output files, if needed.

TO CONCLUDE

When developing your data model, you can test & check your developments by querying the dataset from Tabular Editor. There are four different methods to do this:

  • Writing DAX Queries
  • Drag & Drop Pivot Grids
  • Previewing Table Data
  • Evaluating DAX in C# Scripts & Macros, like the one shared above

Using these methods will make development more convenient and efficient in Tabular Editor, streamlining your workflow and improving your experience testing & querying the model.
